Suzuki has introduced the all-new DR-Z4S and DR-Z4SM models, revealing them at the EICMA event in Milan, Italy. These bikes, modern successors to the popular DR-Z400S and DR-Z400SM, bring fresh updates in design and technology.
Suzuki DR-Z4S and DR-Z4SM Engine and Performance
Both models are powered by a newly developed 398cc, liquid-cooled, single-cylinder DOHC four-stroke engine. This engine, compliant with Euro 5B standards, is designed for better power delivery and fuel efficiency while retaining the DR-Z legacy of reliability. It includes innovations like titanium intake valves, sodium-filled exhaust valves, twin spark plugs, and a slipper clutch with Suzuki’s Clutch Assist System. The 42mm electronic throttle and 10-hole injector ensure smooth power delivery, resulting in peak outputs of 38PS at 8,000rpm and 37Nm torque at 6,500rpm, achieving over 80mpg.
Suzuki DR-Z4S and DR-Z4SM specifications
- 398 cc single cylinder
- 38 PS @ 8000 rpm
- 37 Nm @ 6500 rpm
- Slip and Assist Clutch
- 3 Power modes
- Switchable ABS
- Traction control modes
- Bolt-on aluminium subframe and swingarm
- 280 mm of front fork travel (DR-Z4S)
- 296 mm of rear wheel travel (DR-Z4S)
- 260 mm of front fork travel (DR-Z4SM)
- 277 mm of rear wheel travel (DR-Z4SM)
- Compression and rebound damping adjustment
- DR-Z4S is 21” front and 18” rear
- DR-Z4SM is 17” rims both ends
- 300 mm ground clearance on the DR-Z4S
- 260 mm ground clearance on the DR-Z4SM
- Seat height 920 mm (DR-Z4S)
- Seat height 890 mm (DR-Z4SM)
- 151 kg (DR-Z4S)
- 154 kg (DR-Z4SM)

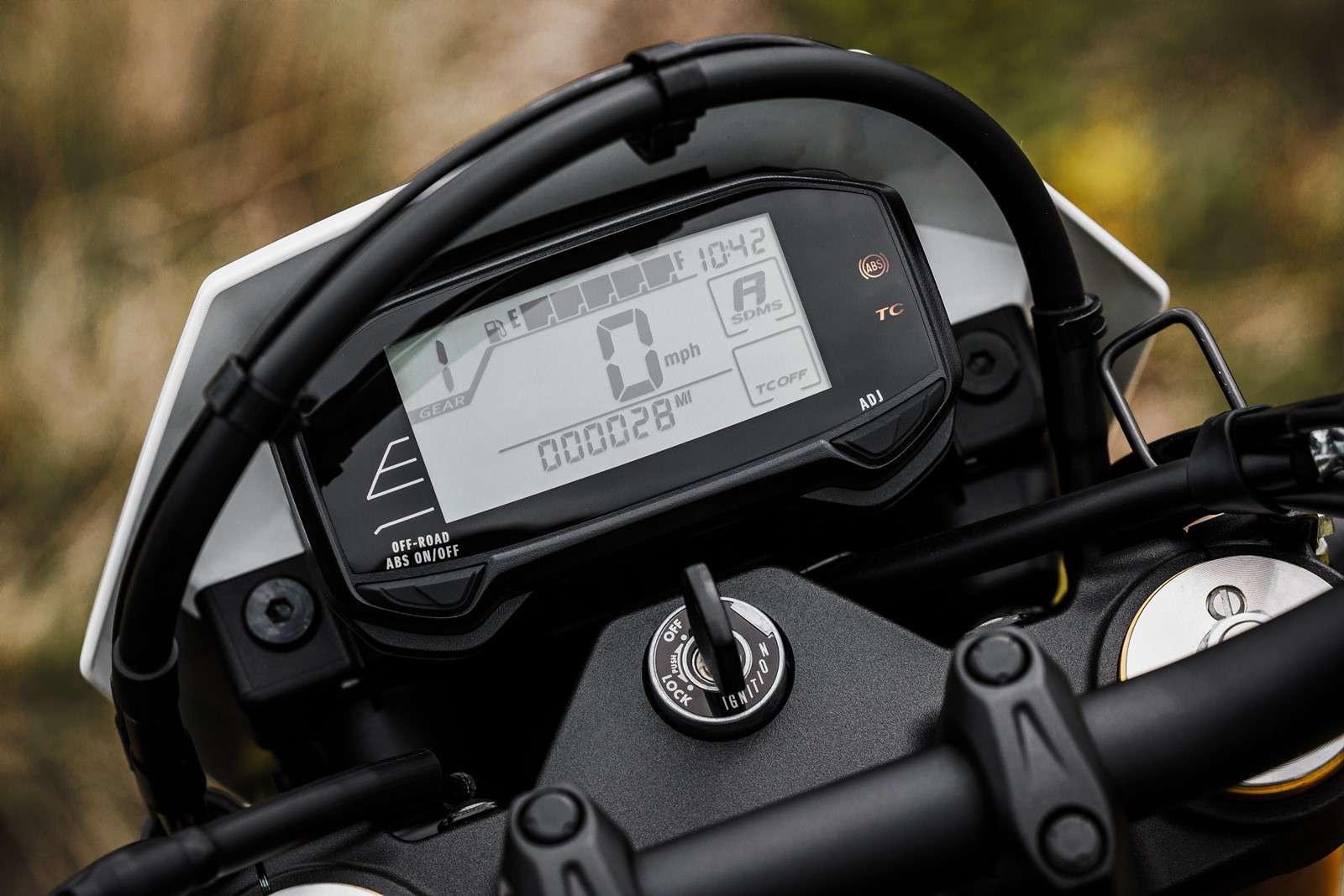

Suzuki DR-Z4S and DR-Z4SM Electronics and Riding Modes
Suzuki equips the DR-Z4S and DR-Z4SM with an advanced electronics package under the Suzuki Intelligent Ride System. Key features include:
- Suzuki Drive Mode Selector (SDMS): Three modes (A, B, C) allow riders to adjust the initial power response to suit various terrains and conditions.
- Traction Control: Two standard modes and a dedicated G (gravel) mode, allowing controlled wheel spin for off-road and supermoto riding.
- ABS Tailoring: The DR-Z4S offers selectable front and rear ABS, while the DR-Z4SM allows rear ABS deactivation for more flexibility.
- Easy Start System: Simplified starting with a single-button press, even in neutral, without clutch engagement.
Suzuki DR-Z4S and DR-Z4SM Chassis and Suspension
The DR-Z4S and DR-Z4SM feature a new twin-spar steel frame, complemented by an aluminum subframe and swingarm, offering rigidity and impact absorption. The long-travel KYB suspension is tuned specifically for each model’s purpose, providing optimal comfort and control. The DR-Z4S offers a 21” front and 18” rear wheel, while the DR-Z4SM sports 17” rims, shod with road-focused Dunlop tires.
Suzuki DR-Z4S and DR-Z4SM Design and Styling
Inspired by Suzuki’s RM-Z series, both models boast a sleek horizontal line design emphasizing agile performance and rider comfort. LED lighting is standard, and color options include Champion Yellow and Solid Iron Grey for the DR-Z4S, and Sky Grey and Special White with blue rims for the DR-Z4SM.
Suzuki DR-Z4S and DR-Z4SM Ergonomics and Accessories
The DR-Z4S and DR-Z4SM are ergonomically designed to avoid interference with rider movement, and there’s a variety of accessories available, including hand guards, a lower seat, and a rear carrier rack. These additions make the DR-Z4 series adaptable to a range of riding environments, from rugged off-road trails to urban roads.
